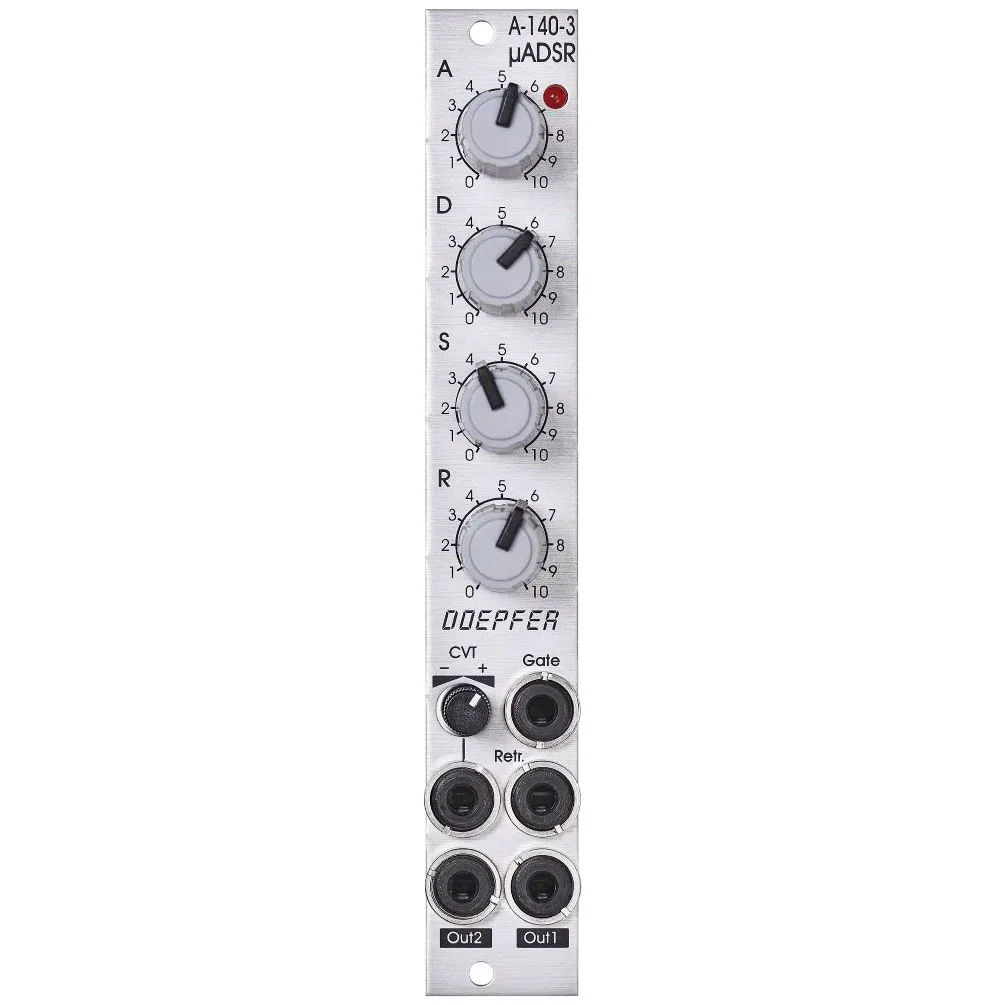

Doepfer A-140-3 Micro ADSR

The Doepfer A-140-3 Micro ADSR is a compact 4HP ADSR envelope generator offering essential modulation and note-shaping functions in a space-efficient format. Based on a single channel of the A-140-2, the A-140-3 provides dedicated controls for attack, decay, sustain and release, along with CV control over envelope timing for more dynamic patches. Dual outputs and configurable routing options make it useful for both traditional envelope duties and more creative modulation tasks.

Specs

• Eurorack ADSR envelope generator
• 4HP width
• Manual Attack, Decay, Sustain and Release controls
• Gate input
• Retrigger input
• Time CV input with attenuverter
• Configurable CV assignment via internal jumpers
• CV control over Decay
• CV control over Decay and Release
• CV control over Attack, Decay and Release
• Two envelope outputs
• Primary envelope output
• Secondary output configurable as normal or inverted envelope
• Internal jumper configuration options
• Suitable for amplitude shaping and general modulation duties

Product Specs

• Item Number: 42586
• Make: Doepfer
• Model: A-140-3
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Envelope Generator
• Made In: Germany
• MPN: A-140-3
• EAN: 4250711114046
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 4 HP 40 mm deep
• Power*: 30 mA +12V 20 mA -12V ? mA 5V

* User contributed details
