The Story

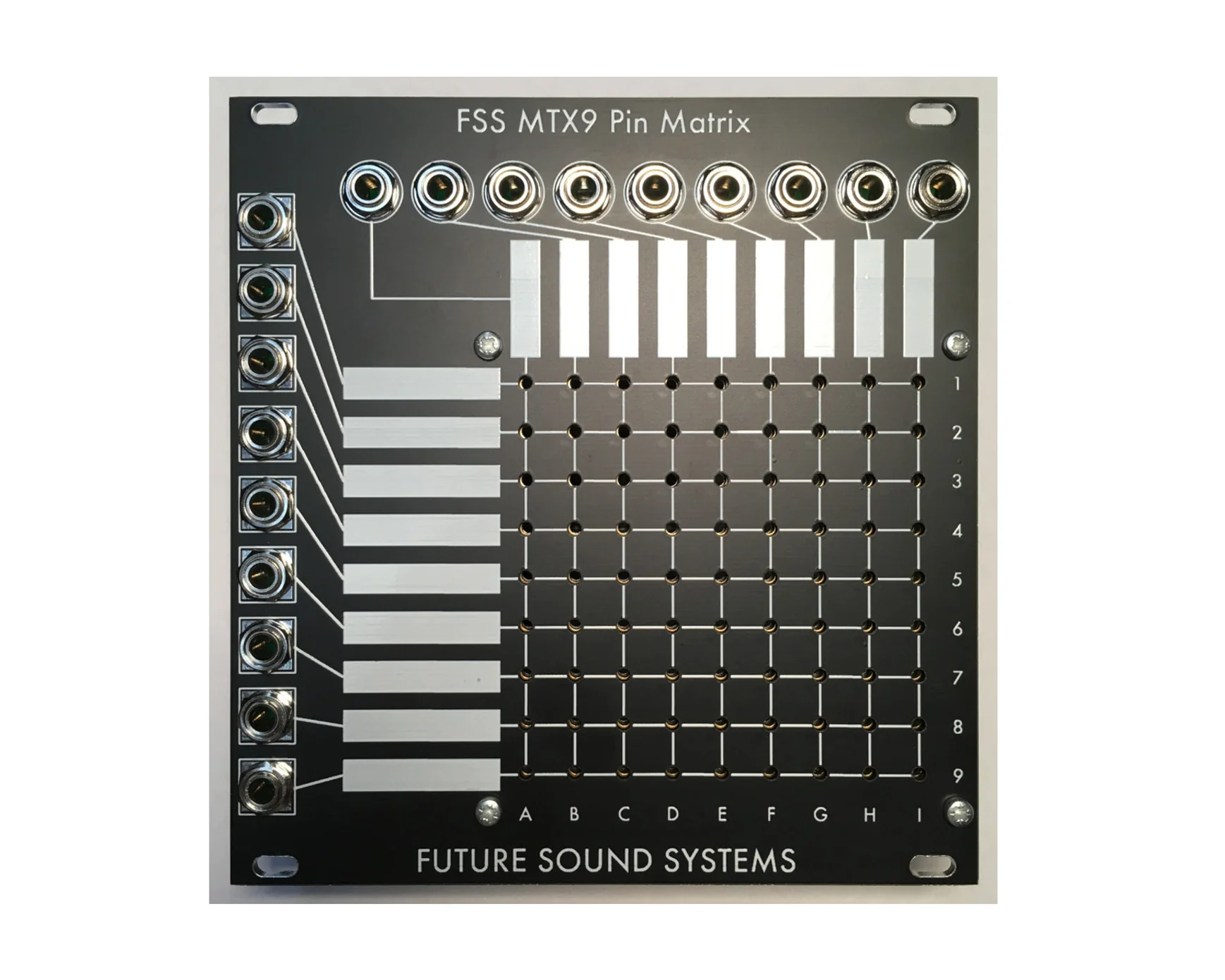

The MTX9 presents a new take on the pin matrix, famously incorporated into EMS and Maplin synthesiser designs. It provides 9 inputs and 9 outputs to be patched to one another, whilst allowing for passive splitting of one input to several outputs and averaging summation of several inputs to one output (or more).
Each component of the matrix has been designed to use standard parts - the pins are 2mm banana test plugs and all cards of the matrix are easily replaceable. The matrix is available as both passive and active units, and passive versions can easily be upgraded to the active model by adding the MTX9A card. The MTX9 is supplied with a dry-wipe marker and 10 banana pins as standard, with spares available from FSS.
Product Specs
- Item Number: 34113
- Make: Future Sound Systems
- Model: MTX9A Active Pin Matrix Eurorack Module
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Mixer Multiple Utility
- Made In: United Kingdom
- MPN: FUTU02
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 24 HP 32 mm deep
- Power*: 110 mA +12V 110 mA -12V 0 mA 5V
* User contributed details
