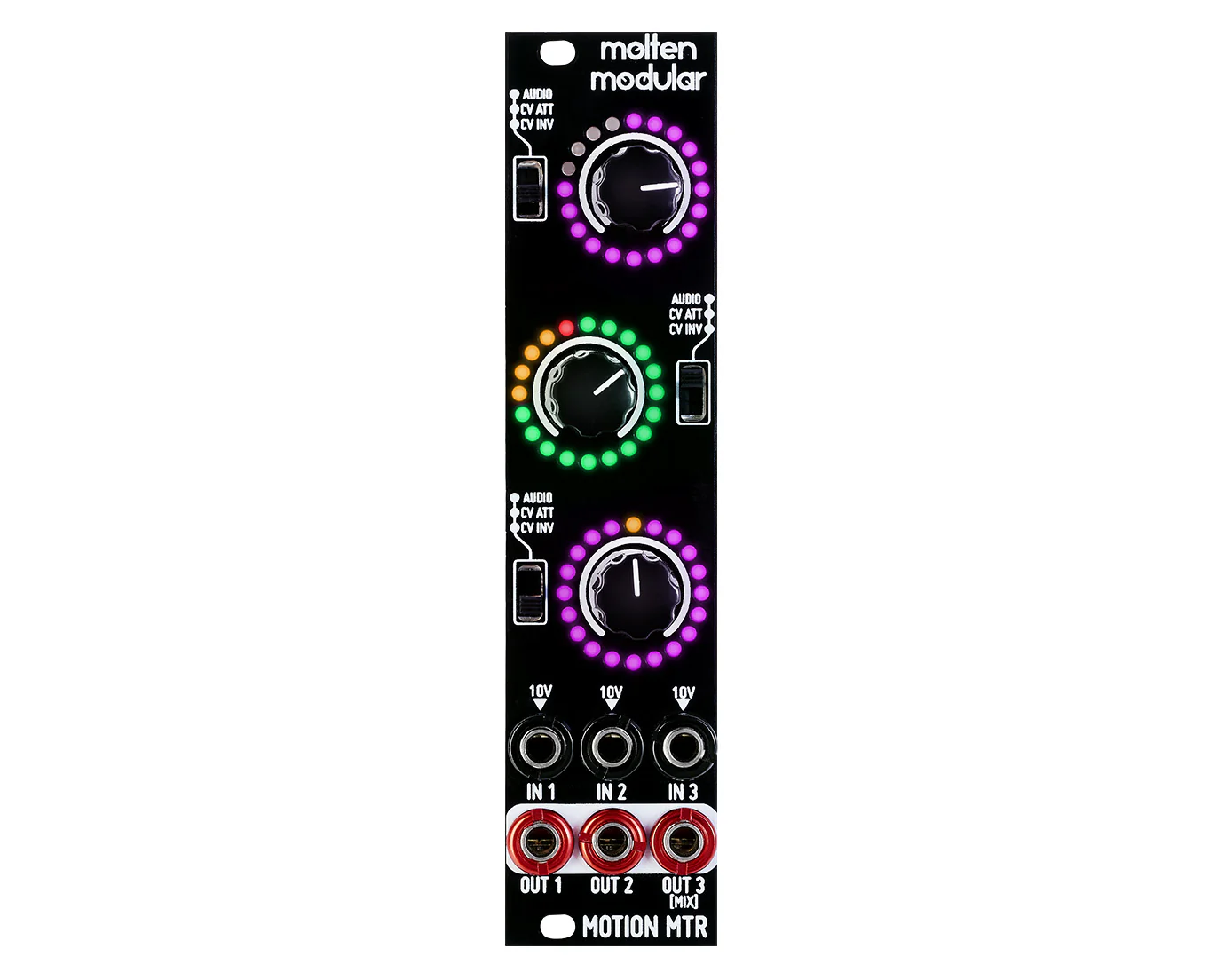

Molten Modular Motion MTR

Motion MTR from Molten Modular is a 6HP CV and Audio utility allowing you to mix, attenuate and invert signals with clear visual feedback of their levels.

Each channel can function as:

• Audio level control with VU meter
• CV attenuator with voltage meter
• CV inverter with voltage meter

Each input is normalled to 10 volts, enabling you to use each of them to generate fixed voltages. The outputs of channels 1 and 2 are summed into Out 3 to be used as a mixer. Patch it crazy style to make it work as an attenuverter with offset, as a mixer, a VU meter or a combination. This module is made by Befaco in collaboration with Robin Vincent from Molten modular.

Video: https://youtu.be/GjLYp72UAz0

Product Specs

• Item Number: 25112
• Make: Molten Modular
• Model: Motion MTR Assembled
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Attenuator Mixer Polarizer Utility
• Made In: Spain
• MPN: MT001
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 6 HP 30 mm deep
• Power*: 110 mA +12V 43 mA -12V 0 mA 5V

* User contributed details
