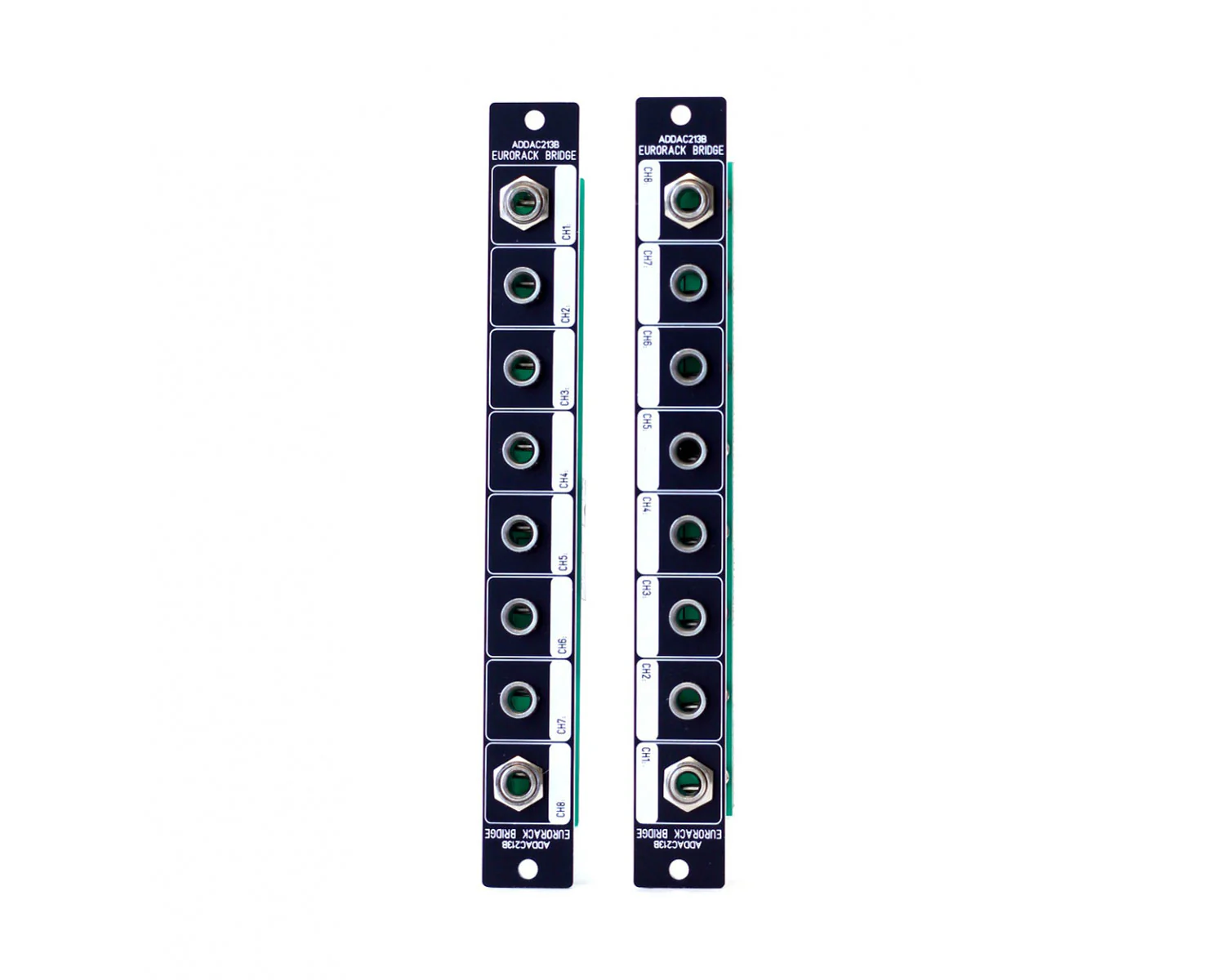

ADDAC Systems ADDAC213B Eurorack Bridge Expansion

A pair of ADDAC213Bs can be used in standalone to send/receive 8 CV or audio signals between different points inside the same case or as an expansion to the main pair of Eurorack Bridge modules, the ADDAC213As.

Standalone use:
Two ADDAC213B modules can be connected to each other with the use of a single ribbon cable and then used inside a case to carry signals between distant points without the need for long cables.

ADDAC213Bs come in pairs. A single pair can send & receive up to 8 CV or audio signals between different points in your case at the same time. The modules can be installed in normal position or a 180 degree position to fit any need.

Do you have modules that you often use together in different areas of your case? Would you prefer that each row’s cables don’t mingle with cables from other rows? Grab yourself a pair of ADDAC213s.

As an Expansion to an ADDAC213A: Each ADDAC213B connected to the backside of an ADDAC213A adds 8 more channels to the main bridging functionality of the ADDAC213A. Up to 2 ADDAC213B can be connected to an ADDAC213A module, expanding the bridging between two difference cases to a total of 24 channels.

Each module can be installed in normal position or at 180 degrees.

Includes 50cm ribbon cable.

Product Specs

• Item Number: 20225
• Make: ADDAC System
• Model: ADDAC213B Eurorack Bridge Expansion
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Multiple Utility
• Made In: Portugal
• MPN: ADDAC213B
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 3 HP 25 mm deep
• Power*: Module does not draw current

* User contributed details
