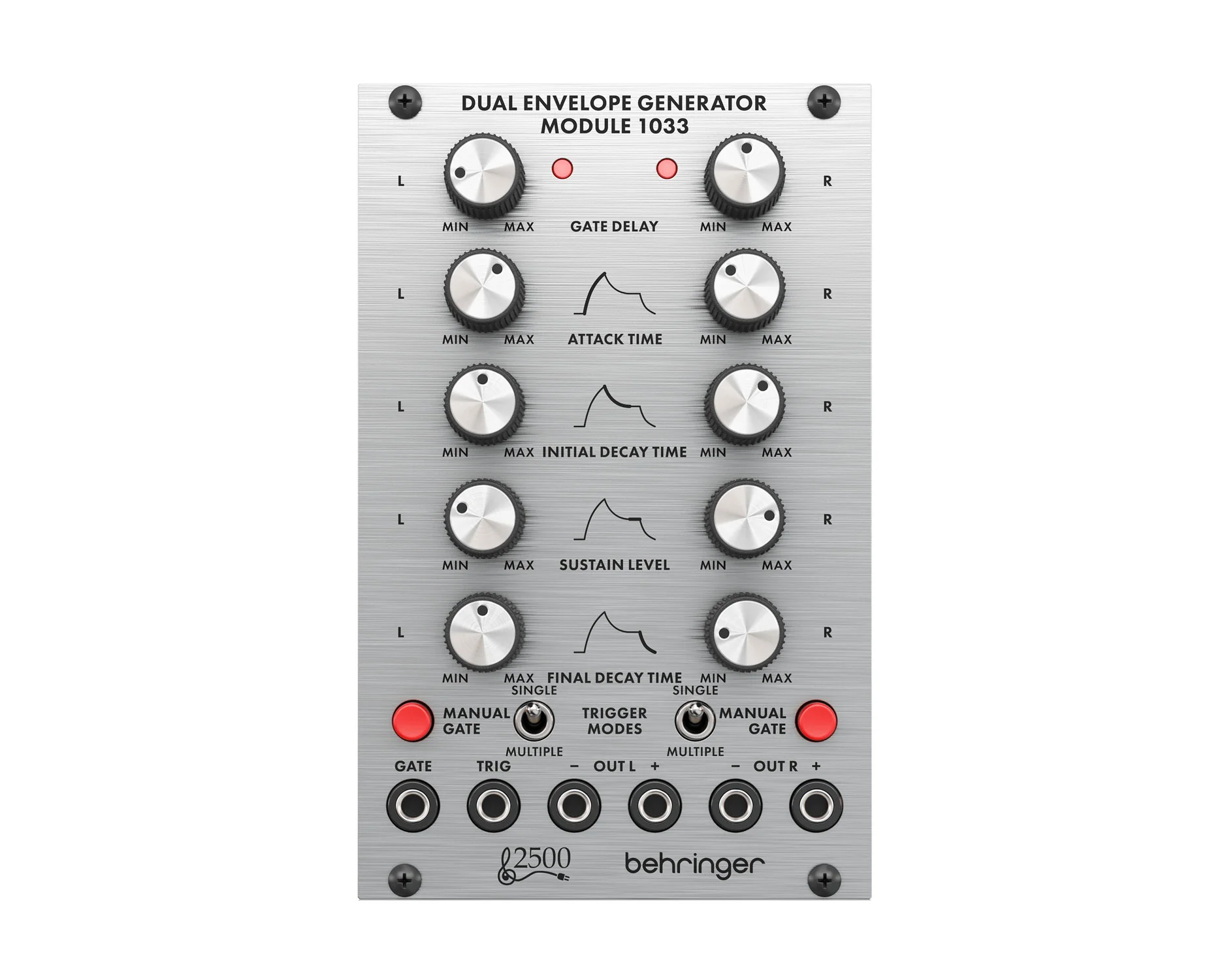

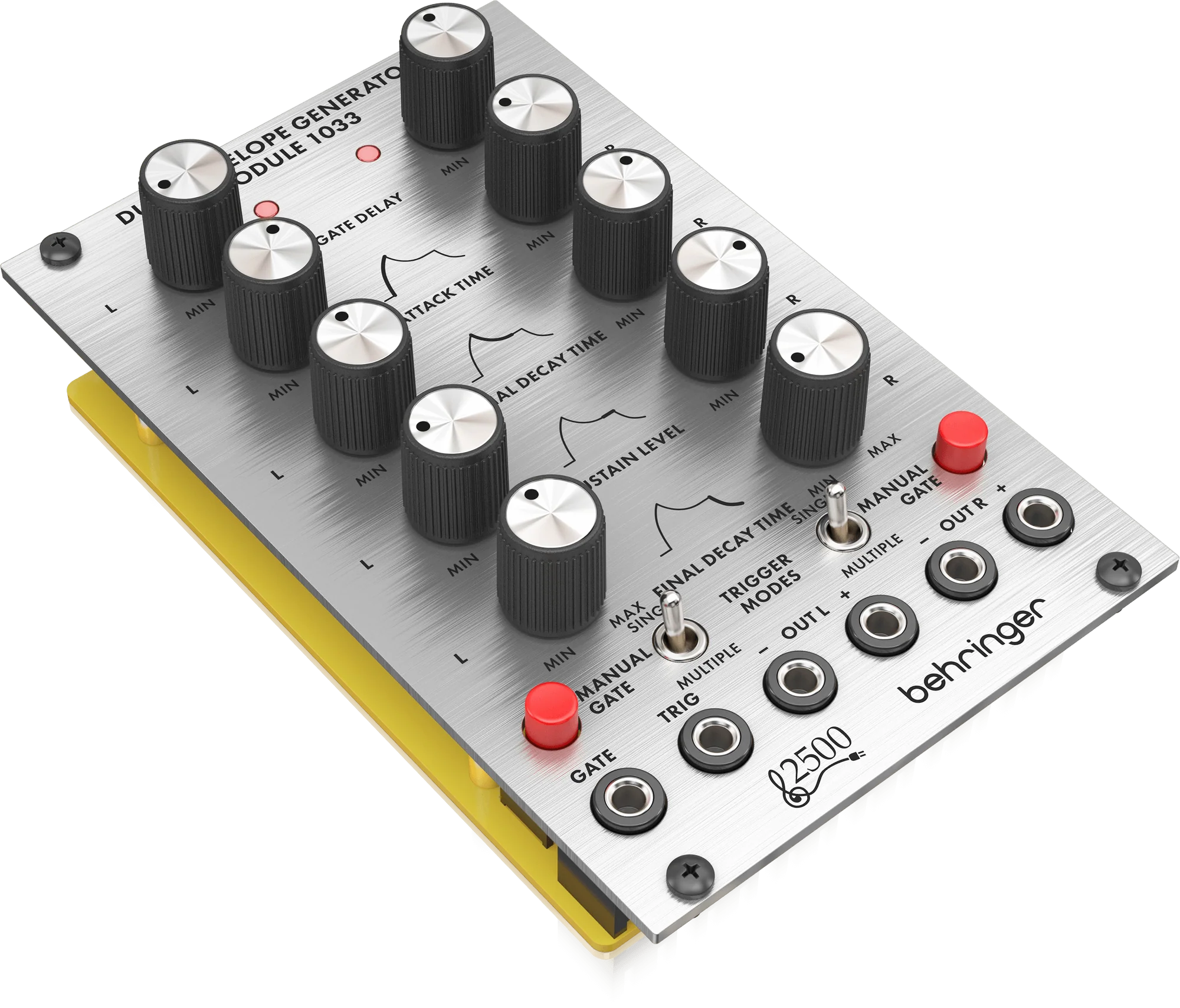

Behringer 1033 Dual Envelope Generator Module

The 1033 Dual Envelope Geerator is an authentic 16HP imitation of the classic “System 2500” circuit from the '70s compatible with a standard Eurorack case. Contains two identical envelope generators for creating control signals, with each generator featuring five adjustable parameters: * Gate Delay * Attack Time * Initial Decay Time * Sustain Level * Final Decay Time

Gate enables the beginning of the envelope to be delayed between 3 ms and 3 seconds. Each envelope is initiated by Gate and Trigger signals. Switchable between 2 operating modes for added flexibility. Single trigger mode uses only the gate signal to control the envelope. Multi trigger mode uses a positive trigger pulse to re-trigger the envelope while a Gate signal is present. Manual gate operation via front panel push button with LED for gate signal indication.

Video: https://youtu.be/7IZRKvMtH7A

Product Specs

• Item Number: 15978
• Make: Behringer
• Model: 1033 Dual Envelope Generator Module
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Dual/Stereo Envelope Generator
• Made In: China
• MPN: BEH-1033DUALENVGENMODULE
• UPC: 644216640300
• EAN: 4033653032520
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 16 HP 42 mm deep
• Power*: 40 mA +12V 20 mA -12V 0 mA 5V

* User contributed details
